Xtreme Outback Heavy Duty Clutch - Toyota Landcruiser 4.5L 1VDFTV KTY30093-1AX Stage 1X - Extra Heavy Duty Sprung Organic

KTY30093-1AX Stage 1X - Extra Heavy Duty Sprung Organic

RRP AU$
$1,080.00
/
Tax included.
  • Most popular Xtreme Outback VDJ 70 Series Upgrade
  • Designed to fit the Factory Flywheel
  • 1300kg Clamping Force
  • Excellent Driveability
  • Includes Custom Engineered Slave Cylinder

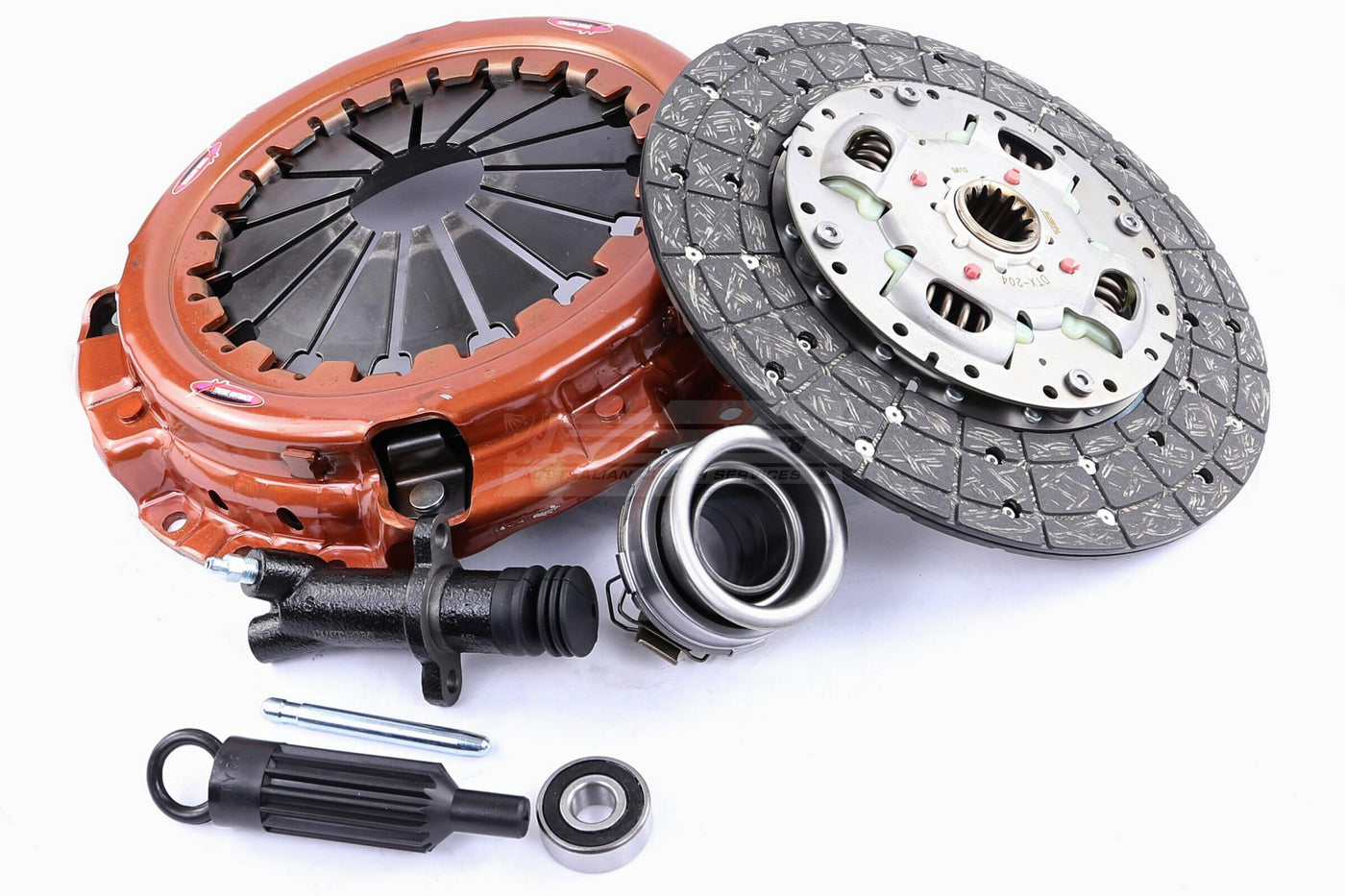

  • kit comes complete with release bearing, alignment tool and pilot bearing

Our most popular VDJ 70 Series LandCruiser Upgrade (suits VDJ76, VDJ78 and VDJ79 4.5L V8 Models), this Extra Heavy Duty clutch upgrade is ideal for highly tuned vehicles and offers a 58% increase in torque capacity over the factory clutch. This kit fits on the factory flywheel and utilises a high dampening friction disc for optimal driveability on the street. With a 1300KG clamping force pressure plate, this upgrade offers a peak torque capacity of 930 Nm and recommended torque capacity (inc. factor of safety) of 750 Nm.

If you require a clutch with an even higher torque capacity, Xtreme Outback also offer a dual friction alternative (KTY30093-1DX/KTY30593-1DX) or the X-Series upgrades with self-adjusting pressure plate (KTY29590-1TX/KTY29590-1DX).

Xtreme Outback Clutch kits and Components are available through our dealer network. To find your closest dealer, please visit our Dealer Locator page

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

For warranty terms and conditions, please visit our Warranty Policy page.

The Xtreme Outback Difference

The Xtreme Outback range of heavy duty clutch upgrades has been specifically designed and engineered to provide increased clamping force for improved torque holding capability. As a division of Australian Clutch Services, Xtreme Outback takes over 30 years of experience in the Australian clutch market as well as an extensive research and development process to engineer clutch upgrades for everything from daily driven 4x4 vehicles to dedicated rally applications. With a variety of stages and options available, the Xtreme Outback range is ideal for those looking for the highest quality and performance for their 4x4.

XTREME OUTBACK

ENGAGE
YOUR
ADVENTURE

Changes to Noise, Vibration & Harshness (NVH)

Xtreme Outback upgrades come in a variety of styles and configurations to align with the performance goals of your vehicle. Performance upgrades such as these are designed primarily for increased clamping force and performance. Whilst we carefully design each product to minimise increases to NVH, please note that this upgrade may result in changed NVH in the cabin. This is especially prevalent with single mass flywheel conversions. This is a normal characteristic for this style of product and is not covered by warranty.

NEED HELP CHOOSING
AN UPGRADE?

Visit Our Guide
Clutch Actuation
Don't Forget to Check

When replacing your clutch, make sure to inspect all actuation components for wear or damage. Xtreme Outback offer a wide range of actuation accessories including clutch forks, pivot balls, transmission guide tubes, master cylinders, slave cylinders, hydraulic lines, boosters and even bolts.
