  • 1600 KG CLAMPING FORCE PRESSURE PLATE WITH SELF-ADJUSTING TECHNOLOGY
  • PEAK TORQUE CAPACITY - 1080 NM
  • RECOMMENDED TORQUE CAPACITY (INC. FACTOR OF SAFETY) - 870 NM
  • EXTRA HEAVY DUTY FRICTION DISC WITH STEEL BACKED LININGS FOR MAXIMUM STRENGTH
  • PRECISION ENGINEERED FLYWHEEL MADE FROM THE HIGHEST QUALITY S45 STEEL
  • CUSTOM ENGINEERED SLAVE CYLINDER FOR OPTIMAL PEDAL ENGAGEMENT HEIGHT

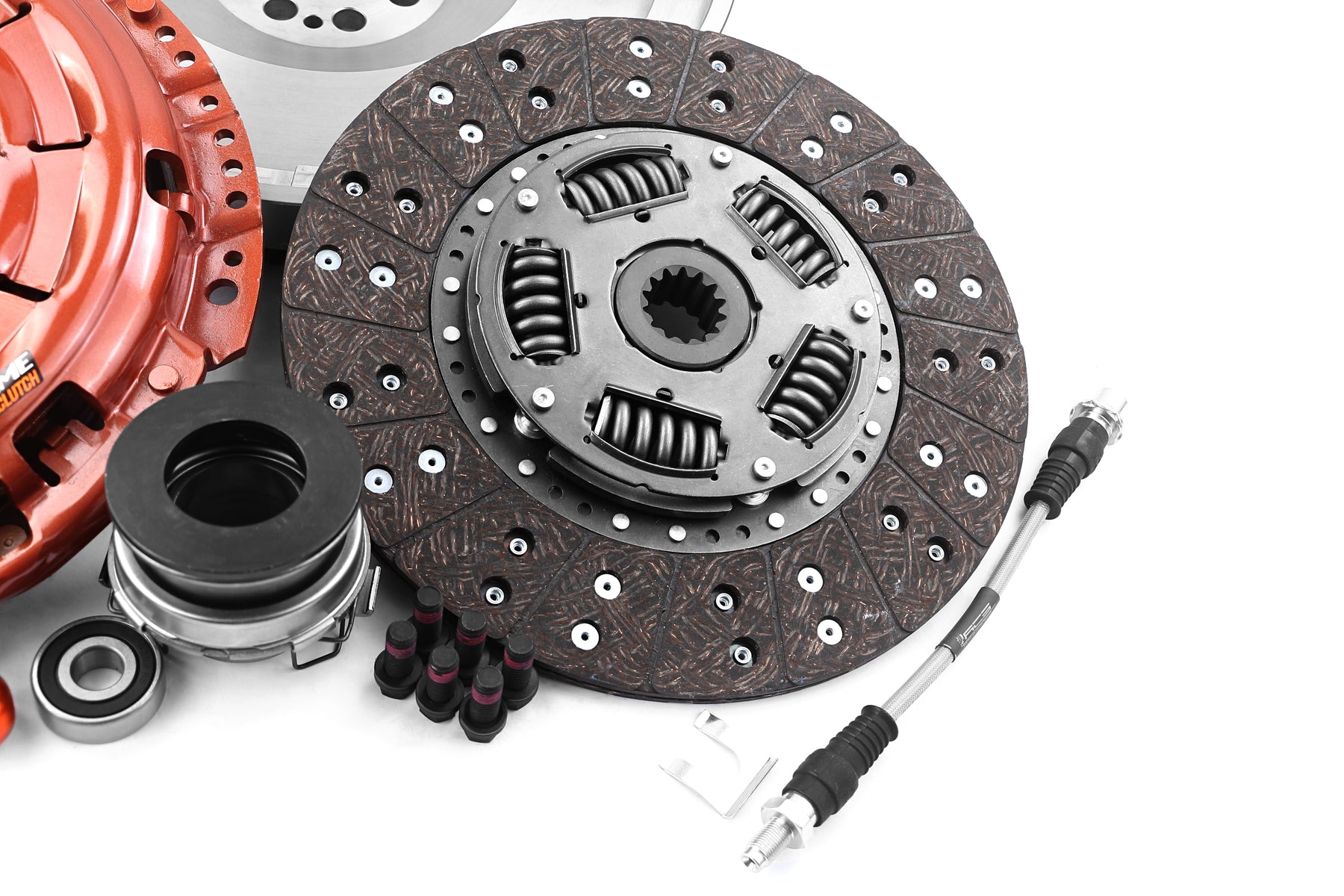

Introducing the game changer for big power VDJs. The Xtreme Outback X-Series takes a self-adjusting pressure plate with an insane 1600kg of clamping force and combines this with a high performance friction disc to maximise torque capacity. This version comes with the organic friction disc for the best driveability and is suitable for vehicles with up to a 100% increase in torque at the engine, but if you need more, make sure to check out our KTY29590-1DX kit which comes with a dual friction disc.

Both kits comes with a custom engineered, high performance S45 steel flywheel as well as the Xtreme Outback custom slave cylinder for optimal pedal feel and engagement point. For those looking for a clutch upgrade for a highly tuned VDJ, whilst minimising changes to driveability, there is simply no alternative.

Xtreme Outback Clutch kits and Components are available through our dealer network. To find your closest dealer, please visit our Dealer Locator page

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

For warranty terms and conditions, please visit our Warranty Policy page.

THE NEW
BENCHMARK

TECHNICAL SPECIFICATIONS

SELF-ADJUSTING PRESSURE PLATE

The first of its type to be fitted to a VDJ, the self-adjusting pressure plate has an internal ratcheting mechanism that adjusts to compensate for friction disc wear. What does this all mean? Well essentially it means that this pressure plate will hold its torque capacity for the life of the clutch and only start to drop off right at the end. It also means you get a consistent pedal feel throughout the life of the clutch.

PERFORMANCE FRICTION DISC

This is where the driveability aspect comes into play. Xtreme Outback offer two friction disc options for these kits including an organic upgrade for optimal driveability and a dual friction disc (Organic one side, ceramic the other) for even higher torque capacity.

Both disc options have a high torque sprung central hub for dampening.

PERFORMANCE FLYWHEEL

The Xtreme Outback X-Series upgrades require a custom flywheel to fit this fancy new pressure plate design to your VDJ. The engineers at Xtreme Outback have developed a bespoke flywheel crafted from S45 Steel which has been carefully designed to keep the mass at optimal levels for harmonics and performance.

CUSTOM ENGINEERED SLAVE CYLINDER

In order to keep the pedal effort and engagement point as close to factory as possible, Xtreme Outback have also custom engineered a slave cylinder to match these kits. This slave cylinder must be installed with the clutch and comes included with both versions of the kit.

BRAIDED CLUTCH LINE

The Xtreme Outback X-Series kits also included a braided clutch line. These lines include a metal braid covered with a protective outer sleeve which makes the line significantly stronger, less prone to cuts from foreign objects and they also have the added benefit of not expanding when using stronger pressure plates and delivering full travel of the
actuation mechanism.

RELEASE BEARING

Designed to be paired with the Xtreme Outback X-Series kits only, this high quality, hardened steel release bearing comes with both versions of the kit and includes a custom contact ring for optimal performance with the pressure plate diaphragm.

ALIGNMENT TOOL

We understand the pain of trying to line up a clutch during installation. It takes time and it can also lead to damage of the friction disc if the transmission is accidentally hung on the friction disc during the installation process. To combat this, the Xtreme Outback X-Series kits comes with a beillet alignment tool which not only looks amazing, but gives the best tolerances for optimal alignment.

Xtreme Outback

ENGAGE
YOUR
ADVENTURE

LEARN ABOUT ALL OF OUR 70 SERIES UPGRADES

We have a PDF download that summarises all of the different upgrade options Xtreme Outback offers to suit the legendary 70 series LandCruiser. As one of the most popular vehicles for tuning, Xtreme Outback offer a range of different upgrades to suit all vehicle uses, performance goals and driveability requirements.
